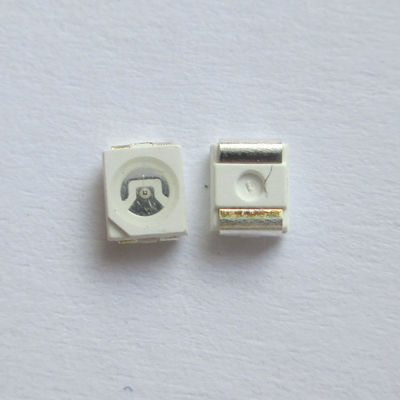

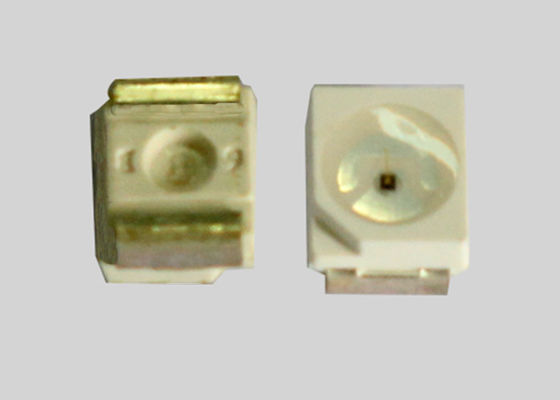

1.9mm Height uv light emitter 3528 Top View smd uv led chip 380nm for Photo catalyst excitation

1.9mm Height uv light emitter 3528 Top View smd uv led chip 380nm for Photo catalyst excitation

    • 1.9mm Height uv light emitter 3528 Top View smd uv led chip 380nm for Photo catalyst excitation
    • 1.9mm Height uv light emitter 3528 Top View smd uv led chip 380nm for Photo catalyst excitation
    • 1.9mm Height uv light emitter 3528 Top View smd uv led chip 380nm for Photo catalyst excitation
    • 1.9mm Height uv light emitter 3528 Top View smd uv led chip 380nm for Photo catalyst excitation
  • 1.9mm Height uv light emitter 3528 Top View smd uv led chip 380nm for Photo catalyst excitation

    Product Details:

    Place of Origin: China
    Brand Name: Double LIGHT
    Certification: ISO9001:2008,Rosh
    Model Number: DL-TOP3528UVC-UV380

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000 pcs
    Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
    Delivery Time: 10-15 working days after received your payment
    Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
    Supply Ability: 15,000,000pcs per Day
    Contact Now
    Detailed Product Description
    Product Name:: 3528 UV Chip LED Power Dissipation:: 95mW
    Forward Current:: 20ma Electrostatic Discharge (HBM): 2000v
    Soldering Temperature: 260℃ For 5 Seconds Peak Emission Wavelength:: 370nm
    Centroid Wavelength: Uv / Purple Viewing Angle: 120 Deg
    Luminous Intensity: 40-55mcd Forward Voltage: 3-4v

    1.9mm Height uv light emitter 3528 Top View smd uv led chip 380nm for Photo catalyst excitation.

    DL-TOP3528UVC-UV380.pdf





    Part No. Chip Material Lens Color Source Color
    DL-TOP3528UVC-UV380 InGaN Water Clear Purple





    • Features:
    1. Available on tape and reel (8mm Tape).
    2. P-LCC-2 package.
    3. White package.
    4. Colorless clear window.
    5. Ideal for backlight and light pipe application.
    6. Inter reflector.
    7. Wide viewing angle.
    8. Long life.
    9. No IR emission. Ideal for heat sensitive materials.
    10. Instant on and instant off.
    11. Sharp spectrum.
    12. Compact light (free design).
    13. Power is adjustable by current (No Shutters Needed).
    14. Ability to operate in low temperature.
    15. Impact Resistant.
    16. Suitable for vapor-phase reflow, Infrared reflow and wave solder processes.
    17. Computable with automatic placement equipment.
    18. The product itself will remain within RoHS compliant Version.
    • Descriptions:
    1. The TOP3528 series is available in soft red, orange, yellow, green, blue and white. Due to the package design, the LED has wide viewing angle and optimized. Light coupling by inter reflector. This feature makes the TOP View LEDs ideal for portable equipment or any other application where is at a premium.
    •  Applications:
    1. Photo catalyst excitation.
    2. Phosphor excitation.
    3. Sensor.
    4. QA equipment.
    5. Counterfeit Bill Detection.



    • Absolute Maximum Ratings at Ta=25℃
    Parameters Symbol Max. Unit
    Power Dissipation PD 95 mW

    Peak Forward Current

    (1/10 Duty Cycle, 0.1ms Pulse Width)

    IFP 100 mA
    Continuous Forward Current IF 20 mA
    Reverse Voltage VR 5 V
    Electrostatic Discharge (HBM) ESD 1000 V
    Operating Temperature Range Topr -40℃ to +80℃
    Storage Temperature Range Tstg -40℃ to +85℃
    Soldering Temperature Tsld 260℃ for 5 Seconds




    • Electrical Optical Characteristics at Ta=25℃
    Parameters Symbol Min. Typ. Max. Unit Test Condition
    Luminous Intensity * IV 40 55 --- mcd IF=20mA (Note 1)
    Viewing Angle * 2θ1/2 --- 120 --- Deg IF=20mA (Note 2)
    Peak Emission Wavelength λp --- 370 --- nm IF=20mA
    Dominant Wavelength λd --- 380 --- nm IF=20mA (Note 3)
    Spectral Line Half-Width △λ --- 15 --- nm IF=20mA
    Forward Voltage VF 3.00 3.30 4.00 V IF=20mA
    Reverse Current IR --- --- 10 µA VR=5V




    Notes:

    1. Luminous Intensity Measurement allowance is ± 10%.
    2. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
    3. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

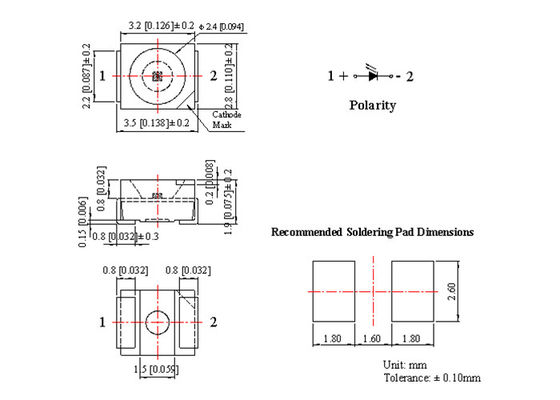

    • Package Dimension:
    1. 1.9mm Height uv light emitter 3528 Top View smd uv led chip 380nm for Photo catalyst excitation
