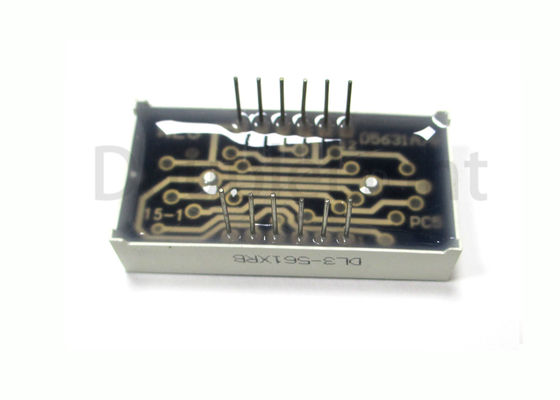

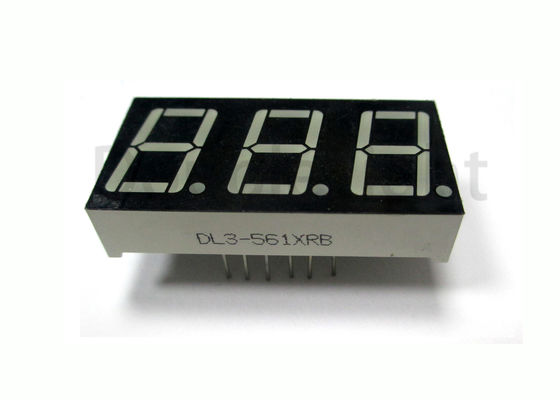

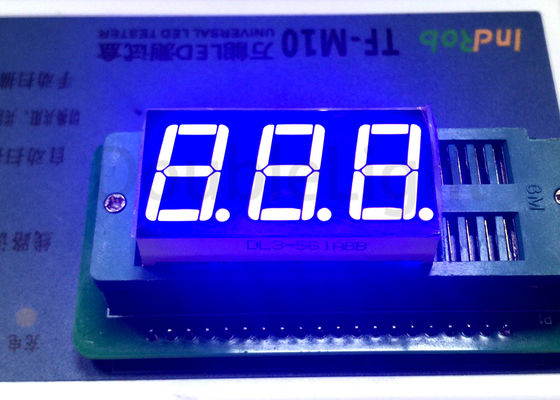

Triple Digit Numeric Led Display , 0.56" Led Bar Display Super Bright Red / Blue Color

Triple Digit Numeric Led Display , 0.56" Led Bar Display Super Bright Red / Blue Color

    • Triple Digit Numeric Led Display , 0.56" Led Bar Display Super Bright Red / Blue Color
    • Triple Digit Numeric Led Display , 0.56" Led Bar Display Super Bright Red / Blue Color
    • Triple Digit Numeric Led Display , 0.56" Led Bar Display Super Bright Red / Blue Color
  • Triple Digit Numeric Led Display , 0.56" Led Bar Display Super Bright Red / Blue Color

    Product Details:

    Place of Origin: China (mainland)
    Brand Name: DOUBLE LIGHT
    Certification: ISO9001:2008/ROHS
    Model Number: DL3-561XRB

    Payment & Shipping Terms:

    Minimum Order Quantity: 1,000pcs
    Price: US$ 0.250-0.45per unit (Pieces) base on the quantity
    Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
    Delivery Time: 7 working days after payment received
    Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
    Supply Ability: 2,000,000pcs per Day
    Contact Now
    Detailed Product Description
    Product Name: 0.56" Triple Digit Numeric Display Package: Triple Digit Numeric Display
    Emitted Color: Super Bright Red Peak Emission Wavelength: 640nm
    Surface Color: Black Diffused Luminous Intensity: 6-20mcd
    Power Dissipation Per Segment: 100mW Forward Current Per Segment: 25mA
    Forward Voltage: 1.6-2.8V Size: 37.6*19.0*8.0mm
    Datasheet: Update

       Datasheet: DL3-561XRB.pdf              Emitting color:Super Bright Red

                           DL3-561XBB.pdf                 Emitting color:Blue

                            DL3-561XPGB.pdf              Emitting color:Pure Green

                            DL3-561XUYB.pdf              Emitting color: Ultra Yellow

                           DL3-561XGB.pdf               Emitting color: Yellow Green






    0.56" Triple Digit Numeric Displays



    This is our 0.56" Triple Digit Numeric Displays, its source color can be customed.

    Features:

    • 0.56″ (inch) digit height.
    • Excellent segment uniformity.
    • Sold state reliability.
    • Industrial standard size.
    • Low power consumption.
    • The product itself will remain within RoHS compliant Version.


    Descriptions:

    • The DL3-561XRB series is a lager 14.20mm (0.56″) high seven segments display designed for viewing distances up to 7 meters.
    • These displays provide excellent reliability in bright ambient light.
    • These devices are made with White Diffused segments and black surface.


    Applications:

    • Audio equipment.
    • Instrument panels.
    • Digital read out display.


    Device Selection Guide:


    Model No. Chip Material Source Color Description
    DL3-561ARB GaAlAs Super Bright Red Common Anode
    DL3-561CRB Super Bright Red Common Cathode




    Package Dimension:
    Triple Digit Numeric Led Display , 0.56" Led Bar Display Super Bright Red / Blue Color


                                  DL3-561ARB
    Triple Digit Numeric Led Display , 0.56" Led Bar Display Super Bright Red / Blue Color

    DL3-561CRB
    Triple Digit Numeric Led Display , 0.56" Led Bar Display Super Bright Red / Blue Color
    Notes:

    • All dimensions are in millimeters (inches).
    • Tolerance is ± 0.25 mm (.010″) unless otherwise noted.
    • Specifications are subject to change without notice.


    Absolute Maximum Ratings at Ta=25℃

    Parameters Symbol Max. Unit
    Power Dissipation Per Segment PD 100 mW

    Peak Forward Current Per Segment
    (1/10 Duty Cycle, 0.1ms Pulse Width)

    IFP 100 mA
    Forward Current Per Segment IF 25 mA
    Dating Linear From 50℃   0.4 mA/℃
    Reverse Voltage VR 5 V
    Operating Temperature Range Topr -40℃ to +80℃
    Storage Temperature Range Tstg -40℃ to +85℃
    Soldering Temperature Tsld 260℃ for 5 Seconds



    Electrical Optical Characteristics at Ta=25



    Parameters Symbol Min. Typ. Max. Unit Test Condition
    Luminous Intensity Iv 6.0 14.0 --- mcd IF=20mA (Note 1)
    Luminous Intensity Matching Ratio (Segment To Segment) Iv-m --- --- 2:1   IF=10mA
    Peak Emission Wavelength λp --- 660 --- nm IF=20mA
    Dominant Wavelength λd --- 640 --- nm IF=20mA (Note 2)
    Spectral Line Half-Width △λ --- 20 --- nm IF=20mA
    Forward Voltage VF --- 2.20 2.80 V IF=20mA
    Reverse Current IR --- --- 50 µA VR=5V



    Luminous intensity is measured with a light sensor and filter combination that approximates the CIE eye-response curve.
    Notes:

    • The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.



    Typical Electrical / Optical Characteristics Curves
    (25℃ Ambient Temperature Unless Otherwise Noted)

    Triple Digit Numeric Led Display , 0.56" Led Bar Display Super Bright Red / Blue Color


    Please read the following notes before using the datasheets:

    • Over-current-proof

    Customer must apply resistors for protection, otherwise slight voltage shift will cause big current change (Burn out will happen).

    • Storage

    2.1 Do not open moisture proof bag before the products are ready to use.

    2.2 Before opening the package, the LEDs should be kept at 30℃ or less and 90%RH or less.

    2.3 The LEDs should be used within a year.

    2.4 After opening the package, the LEDs should be kept at 30℃ or less and 70%RH or less.

    • Soldering Condition

    3.1 Pb-free solder temperature profile.

    3.2 Reflow soldering should not be done more than two times.

    • Soldering Iron

    Each terminal is to go to the tip of soldering iron temperature less than 260℃ for 5 seconds within once in less than the soldering iron capacity 25W. Leave two seconds and more intervals, and do soldering of each terminal. Be careful because the damage of the product is often started at the time of the hand solder.

    • Repairing

    Repair should not be done after the LEDs have been soldered. When repairing is unavoidable, a double-head soldering iron should be used. It should be confirmed beforehand whether the characteristics of the LEDs will or will not be damaged by repairing.





         For more details, please contact us.
