1.10mm Height 0805 Package Dual Colour Led Hyper Red and Pure Green

1.10mm Height 0805 Package Dual Colour Led Hyper Red and Pure Green

Product Details:

Place of Origin: China
Brand Name: Double Light
Certification: RoHS/ REACH
Model Number: DL-PCB0805SRPGC

Payment & Shipping Terms:

Minimum Order Quantity: 3,000pcs/Real
Price: US$ 0.013-0.020per unit (Pieces)
Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability: 2,000,000pcs per day
Contact Now
Detailed Product Description

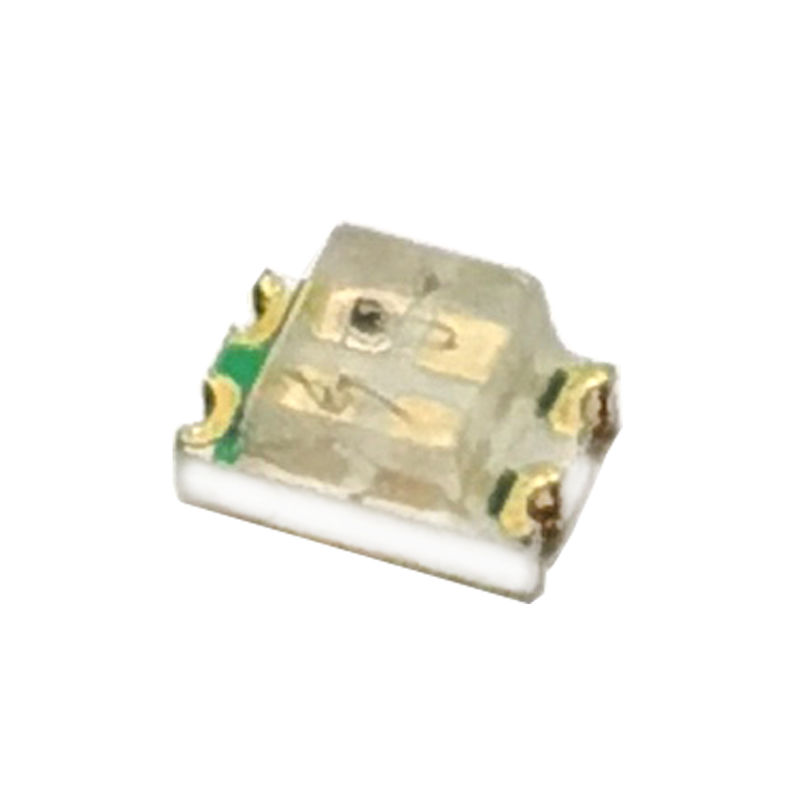

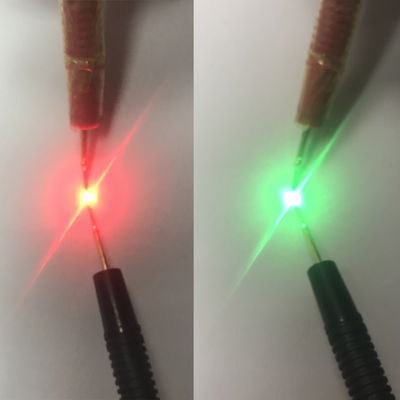

Product Name: 1.10mm Height 0805 Package Hyper Red And Pure Green Bi-Color Chip LED Package: 0805 Package SMD LED
Emitted Color: Hyper Red & Pure Green Product Number: DL-PCB0805SRPGC
Color Temperature: Red:624nm,Pure Green:525nm Lens Type: Water Clear
Forward Voltage @20ma: Hyper Red:1.6-2.4V, Warm White:2.8-3.8V Viewing Angle: Hyper Red:130 Deg, Pure Green:130 Deg



1.10mm Height 0805 Package Dual Colour Led Hyper Red and Pure Green



DL-PCB0805SRPGC.pdf



        This is our 1.10mm Height 0805 Package Hyper Red and Pure Green Bi-Color (Multi-Color) Chip LED.





Features:

  • Package in 8mm tape on 7″ diameter reel.
  • Compatible with automatic placement equipment.
  • Compatible with infrared and vapor phase reflow solder process.
  • 2.00mm×1.80mm SMT LED, 1.10mm thickness.
  • Low power consumption.
  • Color: Hyper Red & Pure Green.
  • Bi-color type.
  • The product itself will remain within RoHS compliant Version.



Descriptions:

  • The PCB 0805 SMD Taping is much smaller than lead frame type components, thus enable smaller higher packing density, reduced storage space and finally smaller equipment to be obtained.
  • Besides, light Weight makes them ideal for miniature applications, etc.



Applications:

  • Automotive: Backlighting in dashboard and switch.
  • Telecommunication: Indicator and backlighting in telephone and fax.
  • Flat backlight for LCD, switch and symbol.



Package Dimension:

1.10mm Height 0805 Package Dual Colour Led Hyper Red and Pure Green



Part No Chip Material Lens Color Source Color
DL-PCB0805SRPGC SR AlGaInP Water Clear Hyper Red
PG InGaN Pure Green



Notes:

1. All dimensions are in millimeters.

2. Tolerance is ±0.10mm (.004″) unless otherwise noted.

3. Specifications are subject to change without notice.





Absolute Maximum Ratings at Ta=25℃

Parameters Symbol Max. Unit
Power Dissipation Hyper Red PD 60 mW
Pure Green 95

Peak Forward Current

(1/10 Duty Cycle, 0.1ms Pulse Width)

IFP 100 mA
Continuous Forward Current IF 25 mA
Reverse Voltage VR 5 V
Operating Temperature Range Topr -40℃ to +80℃
Storage Temperature Range Tstg -40℃ to +85℃
Soldering Temperature Tsld 260℃ for 5 Seconds





Electrical Optical Characteristics at Ta=25℃

Parameters Symbol Emitting Color Min. Typ. Max. Unit Test Condition
Luminous Intensity IV Hyper Red 100 170 --- mcd

IF=20mA

(Note 1)

Pure Green 200 320 ---
Viewing Angle 1/2 Hyper Red --- 130 --- Deg

IF=20mA

(Note 2)

Pure Green
Peak Emission Wavelength λp Hyper Red --- 632 --- nm

Measurement

@Peak

Pure Green --- 520 ---
Dominant Wavelength λd Hyper Red --- 624 --- nm

IF=20mA

(Note 3)

Pure Green --- 525 ---
Spectral Line Half-Width △λ Hyper Red -- 20 --- nm IF=20mA
Pure Green --- 35 ---
Forward Voltage VF Hyper Red 1.60 2.00 2.40 V IF=20mA
Pure Green 2.80 3.40 3.80
Reverse Current IR Hyper Red --- --- 10 µA VR=5V
Pure Green



Notes:

1. Luminous intensity is measured with a light sensor and filter combination that approximates the CIE eye-response curve.

2. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.

3. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.





Reliability Test Items And Conditions:

The reliability of products shall be satisfied with items listed below:

Confidence level: 90%.

LTPD: 10%.

1) Test Items and Results:

No. Test Item Test Hours/Cycles Test Conditions Sample Size Ac/Re
1 Resistance to Soldering Heat 6 Min

Tsld=260±5℃,

Min. 5sec

25pcs 0/1
2 Thermal Shock 300 Cycles

H: +100℃ 5min ∫ 10 sec

L: -10℃ 5min

25pcs 0/1
3 Temperature Cycle 300 Cycles

H: +100℃ 15min ∫ 5min

L: -40℃ 15min

25pcs 0/1
4 High Temperature Storage 1000Hrs. Temp: 100℃ 25pcs 0/1
5 DC Operating Life 1000Hrs. IF=20mA 25pcs 0/1
6 Low Temperature Storage 1000Hrs. Temp: -40℃ 25pcs 0/1
7 High Temperature/ High Humidity 1000Hrs. 85℃/85%RH 25pcs 0/1



2) Criteria for Judging the Damage:

Item Symbol Test Conditions Criteria for Judgment
Min Max
Forward Voltage VF IF=20mA --- F.V.*)×1.1
Reverse Current IR VR=5V --- F.V.*)×2.0
Luminous Intensity IV IF=20mA F.V.*)×0.7 ---



*) F.V.: First Value.



Reel Dimensions:

1.10mm Height 0805 Package Dual Colour Led Hyper Red and Pure Green



Carrier Tape Dimensions:

Loaded quantity 3000PCS per reel.



1.10mm Height 0805 Package Dual Colour Led Hyper Red and Pure Green



Please read the following notes before using the datasheets:

1. Over-current-proof

Customer must apply resistors for protection, otherwise slight voltage shift will cause big current change (Burn out will happen).

2. Storage

2.1 Do not open moisture proof bag before the products are ready to use.

2.2 Before opening the package, the LEDs should be kept at 30℃ or less and 90%RH or less.

2.3 The LEDs should be used within a year.

2.4 After opening the package, the LEDs should be kept at 30℃ or less and 70%RH or less.

2.5 The LEDs should be used within 168 hours (7 days) after opening the package.

2.6 If the moisture adsorbent material (silica gel) has fabled away or the LEDs have exceeded the storage time, baking treatment should be performed using the following conditions. Baking treatment: 60±5℃ for 24 hours.

3. Soldering Condition

3.1 Pb-free solder temperature profile.



3.2 Reflow soldering should not be done more than two times.

3.3 When soldering, do not put stress on the LEDs during heating.

3.4 After soldering, do not warp the circuit board.

4. Soldering Iron

Each terminal is to go to the tip of soldering iron temperature less than 260℃ for 5 seconds within once in less than the soldering iron capacity 25W. Leave two seconds and more intervals, and do soldering of each terminal. Be careful because the damage of the product is often started at the time of the hand solder.



5. Repairing

Repair should not be done after the LEDs have been soldered. When repairing is unavoidable, a double-head soldering iron should be used (as below figure). It should be confirmed beforehand whether the characteristics of the LEDs will or will not be damaged by repairing.



6. Caution in ESD

Static Electricity and surge damages the LED. It is recommended to use a wrist band or anti-electrostatic glove when handling the LED. All devices, equipment and machinery must be properly grounded.
