4.80mm Round With Flange Wide Viewing Angle Type Blue LED

4.80mm Round With Flange Wide Viewing Angle Type Blue LED

4.80mm Round With Flange Wide Viewing Angle Type Blue LED

Product Details:

Place of Origin: China
Brand Name: Double Light
Certification: RoHS/ REACH
Model Number: BL-484BCE-1B80

Payment & Shipping Terms:

Minimum Order Quantity: 1,000pcs/Real
Price: US$ 0.03-0.05 per unit (Pieces)
Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability: 2,000,000pcs per day
Contact Now
Detailed Product Description

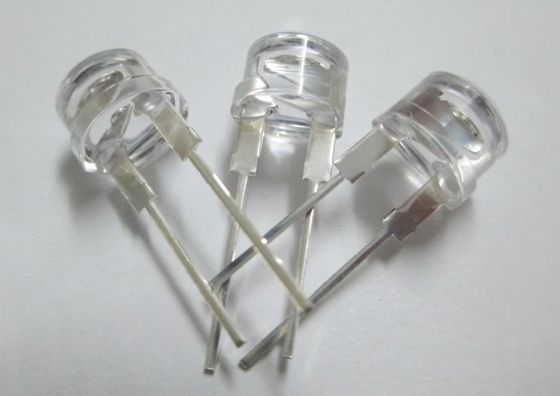

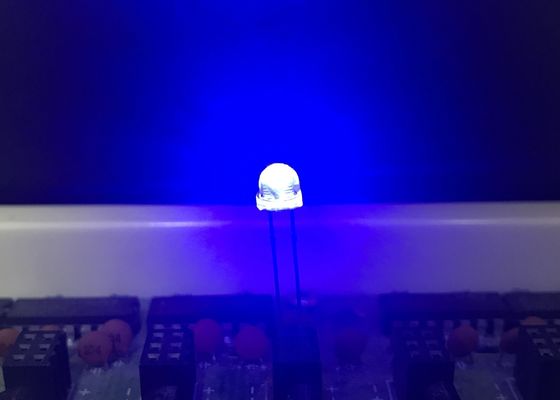

Product Name: 4.80mm Round With Flange Blue LED Package: 4.80mm Round With Flange DIP LED
Emitted Color: Blue Product Number: BL-484BCE-1B80
Color Temperature: 465-475nm Lens Type: Water Clear
Forward Voltage @20ma: 3.0-3.6V Viewing Angle: 80 Deg

DL-484BCE-1B80.pdf



        This is 4.80mm Round With Flange Wide Viewing Angle Type Ultra Yellow LED, its lens color is water clear and emitting color is changeable.





Features:

  • Popular Standard T-1 3/4 diameter package.
  • Choice of various color.
  • Viewing angle=80°.
  • Available on tape and reel.
  • Reliable and robust.
  • Industrial standard footprint.
  • The product itself will remain within RoHS compliant version.



Descriptions:

  • The series is specially designed for applications requiring higher brightness.
  • The LED lamps are available with different colors, intensities, epoxy colors, etc.



Applications:

  • Color Graphic Signs.
  • Message boards.
  • Variable message signs (VMS).
  • Commercial outdoor advertising, etc.



Part No. Chip Material Lens Color Source Color
DL-484BCE-1B80 InGaN Water Clear Blue



Notes:

  • All dimensions are in millimeters (inches).
  • Tolerance is ± 0.25mm (.010″) unless otherwise noted.
  • Protruded resin under flange is 1.00mm (.039″) max.

Specifications are subject to change without notice.





Absolute Maximum Ratings at Ta=25

Parameters Symbol Max. Unit
Power Dissipation PD 95 mW

Peak Forward Current

(1/10 Duty Cycle, 0.1ms Pulse Width)

IFP 100 mA
Forward Current IF 25 mA
Reverse Voltage VR 5 V
Electrostatic Discharge (HBM) ESD 1000 V
Operating Temperature Range Topr -40℃ to +85℃
Storage Temperature Range Tstg -40℃ to +100℃

Lead Soldering Temperature

[4mm (.157″) From Body]

Tsld 260℃ for 5 Seconds







Electrical Optical Characteristics at Ta=25℃

Parameters Symbol Min. Typ. Max. Unit Test Condition
Luminous Intensity * IV 200 360 --- mcd IF=20mA (Note 1)
Viewing Angle * 1/2 --- 80 --- Deg IF=20mA (Note 2)
Peak Emission Wavelength λp --- 468 --- nm IF=20mA
Dominant Wavelength λd --- 470 --- nm IF=20mA (Note 3)
Spectral Line Half-Width △λ --- 25 --- nm IF=20mA
Forward Voltage VF 3.0 3.3 --- V IF=20mA
Reverse Current IR --- --- 10 µA VR=5V



Notes:

  • Luminous Intensity Measurement allowance is ± 10%.
  • θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
  • The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
