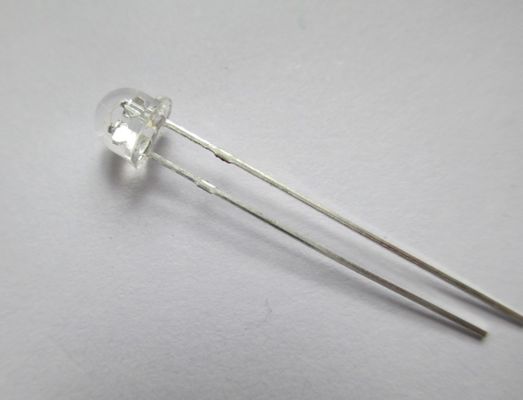

4.80mm Round With Flange Wide Viewing Angle Type Ultra Yellow LED

4.80mm Round With Flange Wide Viewing Angle Type Ultra Yellow LED

4.80mm Round With Flange Wide Viewing Angle Type Ultra Yellow  LED

Product Details:

Place of Origin: China
Brand Name: Double Light
Certification: RoHS/ REACH
Model Number: DL-483SRCE-2SR80

Payment & Shipping Terms:

Minimum Order Quantity: 1,000pcs/Real
Price: US$ 0.03-0.05 per unit (Pieces)
Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability: 2,000,000pcs per day
Contact Now
Detailed Product Description
Product Name: 4.80mm Round With Flange Type Ultra Yellow LED Package: 4.80mm Round With Flange DIP LED
Emitted Color: Ultra Yellow Product Number: DL-483UYCE-2UY80
Color Temperature: 589nm Lens Type: Water Clear
Forward Voltage @20ma: 1.8-2.6V Viewing Angle: 80 Deg
High Light:

multi color led diode


green light emitting diode


          This is 4.80mm Round With Flange Wide Viewing Angle Type Ultra Yellow LED, its lens color is water clear and emitting color is changeable.

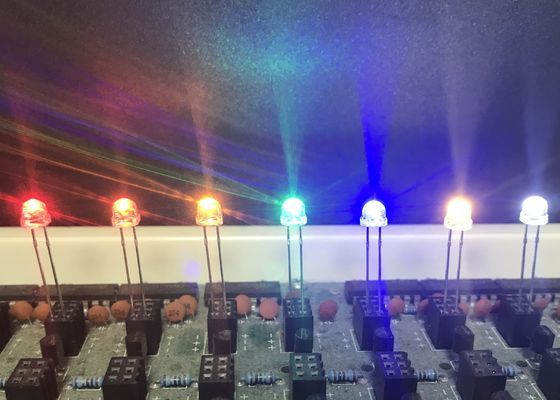

  • Choice of various colors.
  • Viewing angle=80°.
  • Available on tape and reel.
  • Reliable and robust.
  • The product itself will remain within RoHS compliant Version.



  • The series is specially designed for applications requiring higher brightness.
  • The LED lamps are available with different colors, intensities.



  • TV set.
  • Monitor.
  • Telephone.
  • Computer.
  • Circuit board.
  • Status indicators.
  • Commercial use.
  • Advertising Signs.
  • Back lighting.


Part No. Chip Material Lens Color Source Color
DL-483UYCE-2UY80 AlGaInP Water clear Ultra Yellow






  • All dimensions are in millimeters (inches).
  • Tolerance is ± 0.25 mm (.010″) unless otherwise noted.
  • Protruded resin under flange is 1.00 mm (.039″) max.

Specifications are subject to change without notice.



Absolute Maximum Ratings at Ta=25

Parameters Symbol Max. Unit
Power Dissipation PD 65 mW

Peak Forward Current

(1/10 Duty Cycle, 0.1ms Pulse Width)

IFP 100 mA
Forward Current IF 25 mA
Reverse Voltage VR 5 V
Operating Temperature Range Topr -40℃ to +80℃
Storage Temperature Range Tstg -40℃ to +85℃

Lead Soldering Temperature

[4mm (.157″) From Body]

Tsld 260℃ for 5 Seconds




Electrical Optical Characteristics at Ta=25

Parameters Symbol Min. Typ. Max. Unit Test Condition

Luminous Intensity

(Note 1)*

IV 350 450 --- mcd IF=20mA
Viewing Angle* 1/2 --- 80 --- Deg (Note 2)
Peak Emission Wavelength λp --- 592 --- nm IF=20mA
Dominant Wavelength λd --- 589 --- nm IF=20mA
Spectrum Radiation Bandwidth Δλ --- 15 --- nm IF=20mA
Forward Voltage VF 1.80 2.20 --- V IF=20mA
Reverse Current IR --- --- 10 µA VR=5V



  • Luminous Intensity Measurement allowance is ± 10%.
  • θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
  • The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
