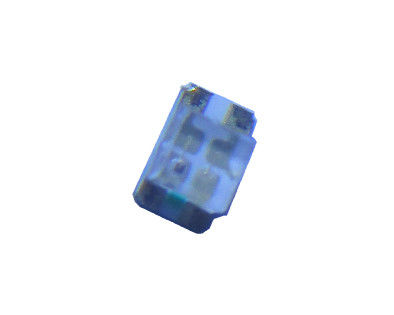

0805 Package Bi Colour Led Multi Color Hyper Red And Pure Green Chip Led

0805 Package Bi Colour Led Multi Color Hyper Red And Pure Green Chip Led

Product Details:

Place of Origin: China (mainland)
Brand Name: DOUBLE LIGHT
Certification: ISO9001:2008/ROHS
Model Number: DL-PCB0805SRPGC

Payment & Shipping Terms:

Minimum Order Quantity: 3000PCS/Reel
Price: US$ 0.0165-0.021 per unit (Pieces)
Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Delivery Time: 5-7 working days after received your payment
Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability: 15,000,000pcs per Day
Contact Now
Detailed Product Description
Product Name: Bi-Color LEDs Package: 0805 SMD LED
Emitted Color: Hyper Red & Pure Green Peak Emission Wavelength: 632nm & 520nm
Chip Material: AlGaInP & InGaN Lens Type: Water Clear
Forward Voltage @20ma: Typ:2.0/3.4v Viewing Angle: 130 Deg
Luminous Intensity: 170 & 320 Mcd

DL-PCB0805SRPGC.pdf

1.10mm Height 0805 Package bi Colour Led Multi Color Hyper red and pure green Chip led



  • Features:

1. Package in 8mm tape on 7″ diameter reel.
2. Compatible with automatic placement equipment.
3. Compatible with infrared and vapor phase reflow solder process.
4. 2.00mm×1.80mm SMT LED, 1.10mm thickness.
5. Low power consumption.
6. Color: Hyper Red & Pure Green.
7. Bi-color type.
8. The product itself will remain within RoHS compliant Version.

  • Descriptions:

1. The PCB 0805 SMD Taping is much smaller than lead frame type components, thus enable smaller higher packing density, reduced storage space and finally smaller equipment to be obtained.
2. Besides, light Weight makes them ideal for miniature applications, etc.

  • Applications:

1. Automotive: Backlighting in dashboard and switch.
2. Telecommunication: Indicator and backlighting in telephone and fax.
3. Flat backlight for LCD, switch and symbol.







Part No. Chip Material Lens Color Source Color
DL-PCB0805SRPGC SR AlGaInP Water Clear Super Red
PG InGaN Pure Green



















  • Absolute Maximum Ratings at Ta=25℃
Parameters Symbol Emitting Color Max. Unit
Power Dissipation PD Super Red 60 mW
Pure Green 95

Peak Forward Current

(1/10 Duty Cycle, 0.1ms Pulse Width)

IFP Super Red 100 mA
Pure Green 100
Continuous Forward Current IF Super Red 25 mA
Pure Green 30
Reverse Voltage VR 5 V
Electrostatic Discharge (HBM) ESD 2000 V
Operating Temperature Range Topr -40℃ to +80℃
Storage Temperature Range Tstg -40℃ to +85℃
Soldering Temperature Tsld 260℃ for 5 Seconds

  • Electrical Optical Characteristics at Ta=25℃
Parameters Symbol Emitting Color Min. Typ. Max. Unit Test Condition
Luminous Intensity IV Super Red 100 170 --- mcd

IF=20mA

(Note 1)

Pure Green 200 320 ---
Viewing Angle 1/2 Super Red --- 130 --- Deg

IF=20mA

(Note 2)

Pure Green --- 130 ---
Peak Emission Wavelength λp Super Red --- 632 --- nm

IF=20mA

(Measurement

@Peak)

Pure Green --- 520 ---
Dominant Wavelength λd Super Red --- 624 --- nm

IF=20mA

(Note 3)

Pure Green --- 525 ---
Spectral Line Half-Width △λ Super Red --- 20 --- nm IF=20mA
Pure Green --- 35 ---
Forward Voltage VF Super Red 1.60 2.20 2.40 V IF=20mA
Pure Green 1.80 3.40 3.80
Reverse Current IR Super Red --- --- 10 µA VR=5V
Pure Green



  • Package Dimension:

0805 Package Bi Colour Led Multi Color Hyper Red And Pure Green Chip Led



0805 Package Bi Colour Led Multi Color Hyper Red And Pure Green Chip Led

0805 Package Bi Colour Led Multi Color Hyper Red And Pure Green Chip Led
