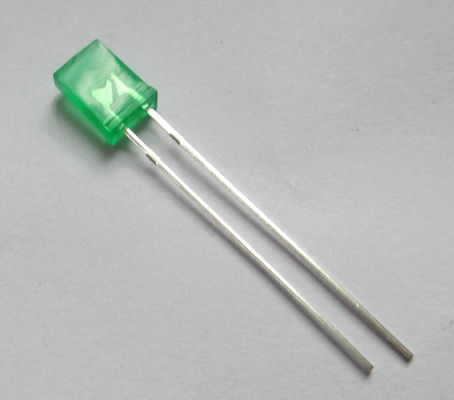

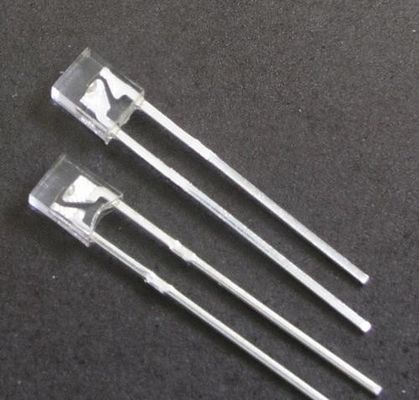

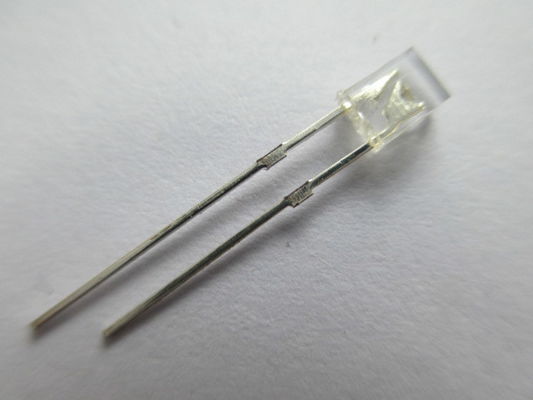

Pure Green led emitting diode Rectangular Without Flange 70 Deg 518nm higher brightness dip lamp light for Indicator Led

Pure Green led emitting diode Rectangular Without Flange 70 Deg 518nm higher brightness dip lamp light for Indicator Led

    • Pure Green led emitting diode Rectangular Without Flange 70 Deg 518nm higher brightness dip lamp light for Indicator Led
    • Pure Green led emitting diode Rectangular Without Flange 70 Deg 518nm higher brightness dip lamp light for Indicator Led
    • Pure Green led emitting diode Rectangular Without Flange 70 Deg 518nm higher brightness dip lamp light for Indicator Led
    • Pure Green led emitting diode Rectangular Without Flange 70 Deg 518nm higher brightness dip lamp light for Indicator Led
  • Pure Green led emitting diode Rectangular Without Flange 70 Deg 518nm higher brightness dip lamp light for Indicator Led

    Product Details:

    Place of Origin: China (mainland)
    Brand Name: DOUBLE LIGHT
    Certification: ISO9001:2008/ROHS
    Model Number: DL-234PGCA-1PG70

    Payment & Shipping Terms:

    Minimum Order Quantity: 10,000pcs
    Price: US$ 0.01 per unit (Pieces)
    Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
    Delivery Time: 5-7 working days after received your payment
    Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
    Supply Ability: 15,000,000pcs per Day
    Contact Now
    Detailed Product Description
    Product Name: Indicators LED Package: 3.2×2mm Rectangular
    Emitted Color: Pure Green Peak Emission Wavelength: 518nm
    Lens Color: Water Clear Forward Voltage @20ma: 2.8-3.3v
    Forward Current: 30mA Luminous Intensity: 1100-2000mcd
    Viewing Angle: 70 Deg Power Dissipation: 120mW
    Shape: Square Application: Indicator

    Pure Green led emitting diode Rectangular Without Flange 70 Deg 518nm higher brightness dip lamp light for Indicator Led



     DL-234PGCA-1PG70.pdf


    Features:

    1. Choice of various colors.
    2. 3.2×2mm Rectangular.
    3. Available on tape and reel.
    4. Reliable and robust.
    5. The product itself will remain within RoHS compliant Version.


    Descriptions:

    1. The series is specially designed for applications requiring higher brightness.
    2. The LED lamps are available with different colors, intensities.


    Applications:

    1. TV set.
    2. Monitor.
    3. Telephone.
    4. Computer.
    5. Circuit board.
    6. Status indicators.
    7. Commercial use.
    8. Advertising Signs.
    9. Back lighting.




    Part No.Chip MaterialLens ColorSource Color
    DL-234PGCA-1PG70InGaNWater ClearYellow Green



    Package Dimension:
    Pure Green led emitting diode Rectangular Without Flange 70 Deg 518nm higher brightness dip lamp light for Indicator Led

    Notes:

    1. All dimensions are in millimeters (inches).
    2. Tolerance is ± 0.25mm (.010″) unless otherwise noted.
    3. Protruded resin under flange is 1.00mm (.039″) max.
    4. Specifications are subject to change without notice.

    Absolute Maximum Ratings at Ta=25

    ParametersSymbolMax.Unit
    Power DissipationPD120mW

    Peak Forward Current

    (1/10 Duty Cycle, 0.1ms Pulse Width)

    IFP100mA
    Forward CurrentIF30mA
    Reverse VoltageVR5V
    Operating Temperature RangeTopr-40℃ to +85℃
    Storage Temperature RangeTstg-40℃ to +100℃

    Lead Soldering Temperature

    [4mm (.157″) From Body]

    Tsld260℃ for 5 Seconds

    Electrical Optical Characteristics at Ta=25

    ParametersSymbolMin.Typ.Max.UnitTest Condition
    Luminous Intensity *IV11002000---mcdIF=20mA (Note 1)
    Viewing Angle *1/2---70---DegIF=20mA (Note 2)
    Peak Emission Wavelengthλp---518---nmIF=20mA
    Dominant Wavelengthλd---523---nmIF=20mA (Note 3)
    Spectral Line Half-Width△λ---35---nmIF=20mA
    Forward VoltageVF2.803.30 VIF=20mA
    Reverse CurrentIR------10µAVR=5V

    Notes:

    1. Luminous Intensity Measurement allowance is ± 10%.
    2. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
    3. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

    Our service:
    Pure Green led emitting diode Rectangular Without Flange 70 Deg 518nm higher brightness dip lamp light for Indicator Led
    [Payment Information]
    1. T/T (Wire Transfer)
    2. WESTERN UNION
    3. PAYPAL
    [Shipping]
    1. We will ship the items within 3 working days after the payment confirmed.
    2. We can ship to you by UPS/DHL/TNT/EMS/FedEx. Please contact us directly and we will use your preferred ways. For the Countries & Regions where EMS cannot deliver, please choose other shipping ways.
    3. We are not responsible for any accidents, delays or other issues caused by the forwarder.
    4. Any import fees or charges are on the buyer's account

    [Refund & Replacement]

    1. We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items).
    2. If the items you purchase from our store are not of perfected quality, that is they don't work electronically to manufacturers specifications, simply return them to us for replacement or refund.
    3. If the items are defective, please notify us within 3 days of delivery.
    4. Any items must be returned in their original condition to qualify for a refund or replacement.
    5. The buyer is responsible for all the shipping cost incurred.
    Pure Green led emitting diode Rectangular Without Flange 70 Deg 518nm higher brightness dip lamp light for Indicator Led
