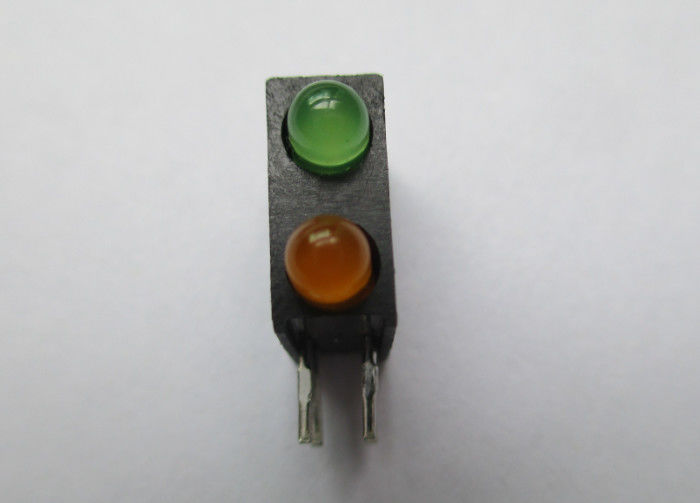

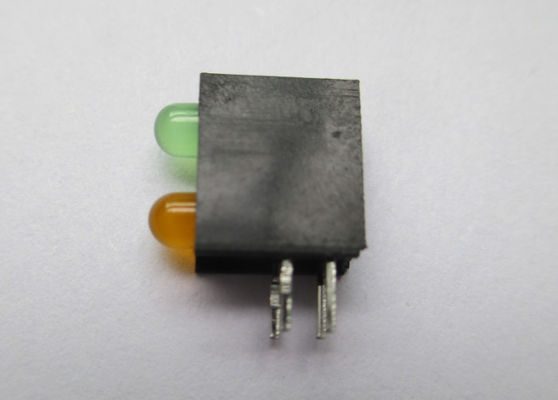

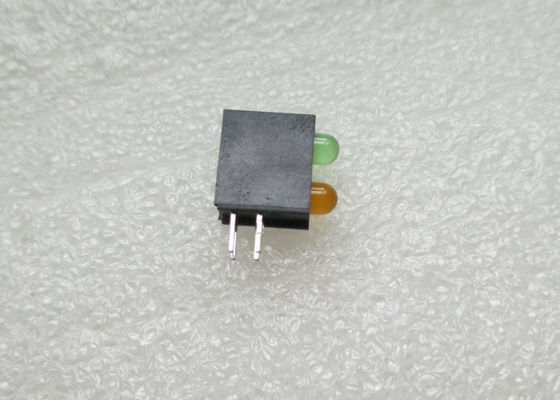

3mm Right Angle Indicator LED with Wide Viewing Angle and Black Casing

3mm Right Angle Indicator LED with Wide Viewing Angle and Black Casing
3mm Right Angle Indicator LED with Wide Viewing Angle and Black Casing 3mm Right Angle Indicator LED with Wide Viewing Angle and Black Casing 3mm Right Angle Indicator LED with Wide Viewing Angle and Black Casing

Large Image :  3mm Right Angle Indicator LED with Wide Viewing Angle and Black Casing

Product Details:
Place of Origin: China
Brand Name: Double Light
Certification: ISO9001:2008,Rosh
Model Number: DL-H30RD
Payment & Shipping Terms:
Minimum Order Quantity: 1000 PCS
Price: USD 0.1-0.13/PCS
Packaging Details: Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Delivery Time: 5-7 working days after received your payment
Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability: 15,000,000pcs per Day
Detailed Product Description
Product Name: LED Light Components Emitted Color: Yellow Green
Chip Material: AllnGaP Lens Type: Green Diffused
Peak Emission Wavelength: 660nm Forward Voltage @20ma: 2.0-2.4V
Viewing Angle: 30 Deg Luminous Flux: 50mcd
High Light:

multi color led diode

,

green light emitting diode

3mm Right Angle Indicator LED with Wide Viewing Angle and Black Casing



 Features:

  1. Pre-trimmed leads for PC mounting
  2. Black case enhances contrast ratio
  3. Wide viewing angle
  4. High reliability life measured in years
  5. Housing UL rating: 94V-0
  6. Housing material: PPA
  7. High temperature-resistant housing
  8. High glass transition temperature epoxy
  9. Package: 500pcs/reel
  10. Moisture sensitivity level: level 3
  11. Compliant with RoHS Directive



Descriptions:

  1. Low power consumption.
  2. High efficiency and low cost.
  3.  Good control and free combinations on the colors of LED lamps.
  4.  Good lock and easy to assembly.
  5.  Stackable and easy to assembly.
  6.  Stackable vertically and easy to assembly.
  7.  Versatile mounting on P.C board or panel.
  8. Stackable horizontally and easy to assembly.
  9. The product itself will remain within RoHS compliant version.
  10.  ARRAY=Plastic Holder + Combinations of Lamps.
  11. The array will easily mount be applicable on any panel up to.
  12.  Used as indicators of indicating the Degree, Functions, Positions etc, in electronic instruments.
Part No. Chip Material Lens Color Source Color
DL-H30RD Gap Water Clear Yellow Green















Absolute Maximum Ratings at Ta=25℃

Parameters Symbol Max. Unit
Power Dissipation PD 78 mW

Peak Forward Current

(1/10 Duty Cycle, 0.1ms Pulse Width)

IFP 100 mA
Forward Current IF 30 mA
Reverse Voltage VR 5 V
Operating Temperature Range Topr -40℃ to +80℃
Storage Temperature Range Tstg -40℃ to +85℃

Lead Soldering Temperature

[4mm (.157″) From Body]

Tsld 260℃ for 5 Seconds


Electrical Optical Characteristics at Ta=25℃

Parameters Symbol Min. Typ. Max. Unit Test Condition

Luminous Intensity

(Note 1)*

IV 13 30 --- mcd IF=20mA
Viewing Angle* 1/2 --- 60 --- Deg (Note 2)
Peak Emission Wavelength λp --- 640 --- nm IF=20mA
Dominant Wavelength λd --- 630 --- nm IF=20mA
Spectrum Radiation Bandwidth Δλ --- 45 --- nm IF=20mA
Forward Voltage VF 1.60 2.00 2.60 V IF=20mA
Reverse Current IR --- --- 10 µA VR=5V




Notes:

1. Luminous Intensity Measurement allowance is ± 10%.

2. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.

3. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device



Package Dimension:

3mm Right Angle Indicator LED with Wide Viewing Angle and Black Casing 0
